15kv AAC AAAC ACSR Conductor XLPE HDPE Insulation tree cable standard NTC 5909, ICEA S121-733
Application:
Tree cable are mainly used for primary and secondary overhead distribution where limited space is available or desirable for rights of way and aerial power transmission at 15/25/35 maximum system voltage. the phase to phase voltage is 10/20/33KV.. The covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.
The conductor material: AAC AAAC ACSR etc.
Conductor Shield: Semi conducting cross-linked polyethylene
Insulation: Cross-linked polyethylene; Colour : Natural
Sheath: Track resistant cross-linked polyethylene; Colour : Black, Gray
Classification:
Normal operation 90 °C
Emergency overload conditions 130 °C
Short circuit conditions 250°C
Manufacturing Standards:
• ASTM B230: Aluminum wires, alloy 1350-H19 for electrical purposes.
• ASTM B231: Type 1350-H19 stranded aluminum conductors in concentric layers.
• ASTM B232: Aluminum Stranded Conductors Reinforced with Steel (A.C.S.R.)
• ASTM B399: Aluminum alloy 6201 - T81 stranded conductors.
• NTC 5909: Covered (semi-insulated) non-shielded power cables of 15 kV - 46 kV, for use in overhead power distribution lines.
• ANSI/ICEA S-121-733: Standard for ecological cable - semi-insulated overhead lines.
In addition to all the requirements of the National Electrical Code.
Parameter:
Nominal cross - sectional area
mm² | Number of wire
No. | Diameter of
conductor (Approx.)
mm | Thickness of
insulation
mm | Thickness of
sheath
mm | Overall diameter (Approx.)
mm | Maximum DC.
conductor resistance at 20°C
Ω / km | Minimum insulation resistance at 15.6°C
MΩ-km | Allowable ampacities in free
air at 40°C ambient
A | Cable weight (Approx.)
kg / km |
| 185 | 37 | 16.2 | 1.91 | 1.91 | 25.5 | 0.164 | 980 | 433 | 763 |

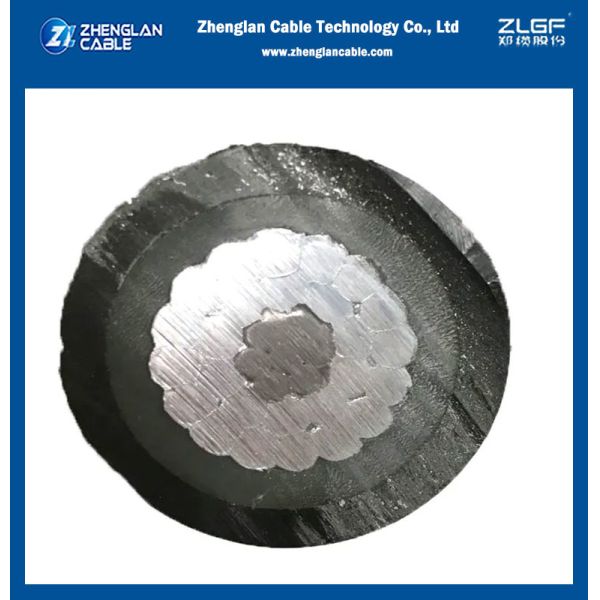

Picture:
Packages:
About us
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on. The company’s products are produced in strict accordance with national standards(GB), and can be produced in accordance with International Electrotechnical Commission Standards(IEC), CCITT, British Standards (BS), German Standards (DIN), Japanese Standards(JIS), American standard(ASTM), French standard (NF) production, but also according to customer requirements for non-standard cable product design and manufacturing to meet different customer needs.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
