Line Bare Conductors Overhead Transmission Cable AAC / ACSR ASTM B231 ASTM B232 ASTM B399

  • 1
  • 2

Brand Name : Zhenglan Cable

Model Number : Laurel 266.8MCM (19/3.01mm) All aluminum conductor ASTM230/231M

Certification : ISO 9001:2020，ISO 14001:2020

Place of Origin : Henan, CN

MOQ : 3tons

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 15tons/day

Delivery Time : 15-30 days

Packaging Details : Fully wooden drum, steel wooden drum, fully steel drum or customized

Material : aluminium

Size : 266.8

Standard : ASTM B231

Application : overhead use

Brand : Zhenglan Cable

Port : Tianjin, Qingdao

Contact Now

AAAC/ AAC/ACSR Line Bare Conductors Overhead Transmission Types Cable ASTM B231 ASTM B232 ASTM B399

APPLICATION

All Aluminum Conductor is used in involved electric power transmission and distribution lines with various grade voltages.

CONSTRUCTION
Aluminum1350 wires concentric lay stranded wrapped helically around a central wire.

STANDARDS
ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.

Technical Data

DIN 48201 part6

Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm2 mm2 No.×mm mm kg/km KN Ω/Km A
16 15.89 7/1.70 5.1 43 4.44 2.0742 78
25 24.25 7/2.10 6.3 66 6.77 1.3593 102
35 34.36 7/2.50 7.5 94 9.6 0.9591 126
50 49.48 7/3.00 9 135 13.82 0.666 158
50 48.35 19/1.80 9 133 13.5 0.6849 156
70 65.81 19/2.10 10.5 181 18.38 0.5032 189
95 93.27 19/2.50 12.5 256 26.05 0.3551 234
120 116.99 19/2.80 14 322 32.68 0.2831 269
150 147.11 37/2.25 15.8 406 41.09 0.2256 309
185 181.62 37/2.50 17.5 500 50.73 0.1828 352
240 242.54 61/2.25 20.3 670 67.74 0.1371 420
300 299.43 61/2.50 22.5 827 83.63 0.111 477
400 400.14 61/2.89 26 1104 111.76 0.0831 568
500 499.83 61/3.23 29.1 1379 139.6 0.0665 649
625* 626.2 91/2.96 32.6 1732 174.9 0.0531 742
800* 802.09 91/3.35 36.9 2218 224.02 0.0415 857
1000* 999.71 91/3.74 41.1 2767 279.22 0.0333 971

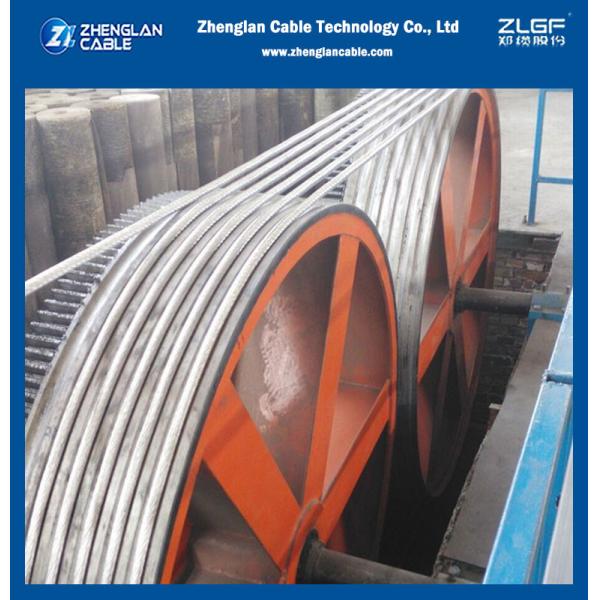

Product show

Line Bare Conductors Overhead Transmission Cable AAC / ACSR ASTM B231 ASTM B232 ASTM B399Line Bare Conductors Overhead Transmission Cable AAC / ACSR ASTM B231 ASTM B232 ASTM B399

Package

Line Bare Conductors Overhead Transmission Cable AAC / ACSR ASTM B231 ASTM B232 ASTM B399

Test equipment

Line Bare Conductors Overhead Transmission Cable AAC / ACSR ASTM B231 ASTM B232 ASTM B399

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
