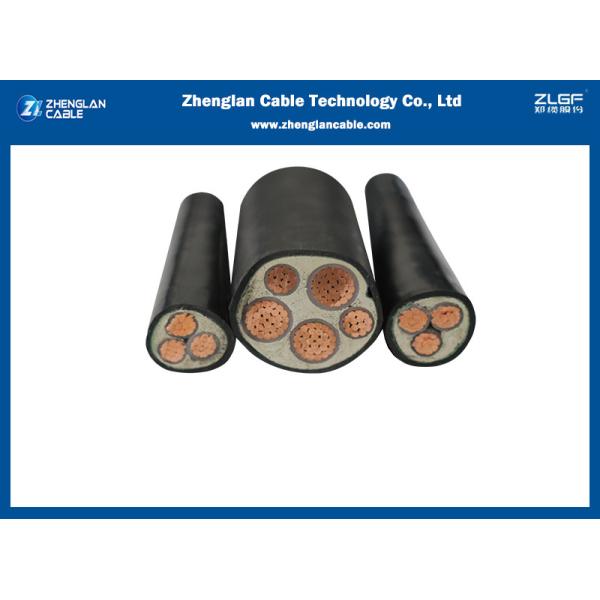

0.6/1kv NYY 4 Core Copper/Aluminum Conductor XLPE PVC Insulated Underground Armoured 4x50sqmm As Per VDE0276, IEC60502-1
Application:
These XLPE insulated cables are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation:PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363.PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.
Colour Code Colour Code (1):1 Core: Red or Black2 Cores: Red, Black3 Cores: Red, Yellow, Blue4 Cores: Red, Yellow, Blue, Black5 Cores: Red, Yellow, Blue, Black, GreenAbove 5 Cores: Black Cores with White numerals
Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
Special version upon request
Fire resistant version
LSZH sheath version
AWA,SWA,STA armoured version
PE sheath version
Technical data sheets
Two core unarmoured
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm^2 | mm | mm | mm | mm |
| 2x1.5 | 1.4 | 0.7 | 1.8 | 9.2 |
| 2x2.5 | 1.8 | 0.7 | 1.8 | 10 |
| 2x4 | 2.3 | 0.7 | 1.8 | 11 |
| 2x6 | 2.8 | 0.7 | 1.8 | 12 |
| 2x10 | 3.6 | 0.7 | 1.8 | 13.6 |
| 2x16 | 4.5 | 0.7 | 1.8 | 15.4 |
| 2x25 | 5.6 | 0.9 | 1.8 | 18.4 |
| 2x35 | 6.7 | 0.9 | 1.8 | 20.6 |
| 2x50 | 8 | 1 | 1.8 | 23.6 |
| 2x70 | 9.4 | 1.1 | 1.8 | 26.8 |
| 2x95 | 11 | 1.1 | 1.9 | 30.2 |
| 2x120 | 12.4 | 1.2 | 2 | 33.7 |
| 2x150 | 13.8 | 1.4 | 2.2 | 37.5 |
| 2x185 | 15.3 | 1.6 | 2.3 | 41.6 |
| 2x240 | 17.5 | 1.7 | 2.5 | 46.7 |
| 2x300 | 19.5 | 1.8 | 2.6 | 51.4 |
| 2x400 | 22.6 | 2 | 2.9 | 58.9 |
Two cores Galvanized steel wire armoured
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation thickness | Nominal Inner Covering thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) |
| mm^2 | mm | mm | mm | mm | mm | mm |
| 2x1.5 | 1.4 | 0.7 | 1 | 0.8 | 1.8 | 12.8 |
| 2x2.5 | 1.8 | 0.7 | 1 | 0.8 | 1.8 | 13.6 |
| 2x4 | 2.3 | 0.7 | 1 | 0.8 | 1.8 | 14.6 |
| 2x6 | 2.8 | 0.7 | 1 | 1.25 | 1.8 | 16.5 |
| 2x10 | 3.6 | 0.7 | 1 | 1.25 | 1.8 | 18.1 |
| 2x16 | 4.5 | 0.7 | 1 | 1.25 | 1.8 | 19.9 |
| 2x25 | 5.6 | 0.9 | 1 | 1.6 | 1.8 | 23.6 |
| 2x35 | 6.7 | 0.9 | 1 | 1.6 | 1.8 | 25.8 |
| 2x50 | 8 | 1 | 1 | 1.6 | 1.9 | 29 |
| 2x70 | 9.4 | 1.1 | 1 | 2 | 2 | 33.2 |
| 2x95 | 11 | 1.1 | 1.2 | 2 | 2.1 | 37.1 |
| 2x120 | 12.4 | 1.2 | 1.2 | 2 | 2.3 | 40.5 |
| 2x150 | 13.8 | 1.4 | 1.2 | 2.5 | 2.4 | 45.4 |
| 2x185 | 15.3 | 1.6 | 1.4 | 2.5 | 2.6 | 49.9 |
| 2x240 | 17.5 | 1.7 | 1.4 | 2.5 | 2.7 | 55.1 |
| 2x300 | 19.5 | 1.8 | 1.6 | 2.5 | 2.9 | 60.2 |
| 2x400 | 22.6 | 2 | 1.6 | 2.5 | 3.1 | 67.7 |
