Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231M
Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231M Application:
Bare aluminum conductor are made of stranded 1350 aluminum. They are classified as follows:
Class AA For bare conductors usually used in overhead lines.
Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231 Manufacture Standard
AAC bare conductors meet or exceed the following ASTM specifications :
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors
Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231M Features:
Single stranded conductor is flexible and durable
All aluminum construction is relatively lightweight and cost-effective
Higher corrosion resistance than ACSR
No insulation or jacket
Applications:
Overhead power transmission
Extra High Voltage (EHV) transmission lines
Primary and secondary distribution
Sub-service spans down to private premises
Maintains high ampacity
Suitable for shorter spans on towers and poles
Aluminum conductor AAC 705MCM Arbutus 402.8MCM 37/3.72mm ASTMB231/231M Technical data
| Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* |
| AWG&MCM | mm2 | No.×mm | mm | kg/km | KN | Ω/Km | A |
| Arbutus | 795 | 402.8 | 37/3.72 | 26.04 | 1109 | 61.8 | 0.0715 | 605 |

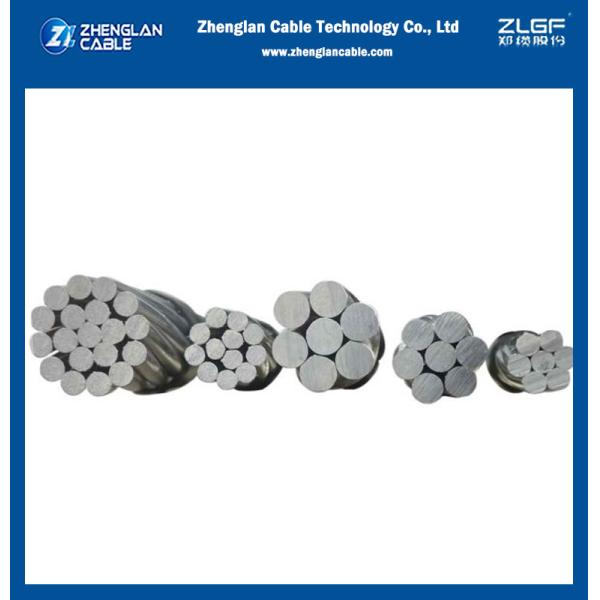

Aluminum conductor AAC Conductor images
