ACSR 70/12mm2 AL26/1.85 ST7/1.44 BS215 Bare Conductor Aluminum Conductor Steel Reinforced

  • 1
  • 2
  • 3

Brand Name : Zhenglan Cable

Model Number : 70/12mm2 AL26/1.85 ST7/1.44 Aluminum Conductor Steel Reinforced

Certification : 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin : Henan, China

MOQ : Negotiable

Price : 0.5-80USD/m

Payment Terms : T/T, L/C

Supply Ability : 10-30tons/day

Delivery Time : 15 days

Packaging Details : Wooden drum, wood and steel drum,as customer's request

Material : Aluminum Conductor Steel Reinforced

Aluminum : aluminum and galvanized steel wire

Core : Steel

Cable Drum Length : Customized

characted : Bare Conductor

Contact Now

Description:
The use of Aluminium as a material for electrical conductors has greatly developed mainly due to its electrical properties. However, Aluminium conductors for most of transmission lines which spans are quite long, it is necessary an additional mechanical support. Commonly it is used galvanized steel wires for cores of ACSR.
Application:
Widely used as bare cable for overhead transmission lines and also as primary and secondary bare cable for distribution lines.
Construction:

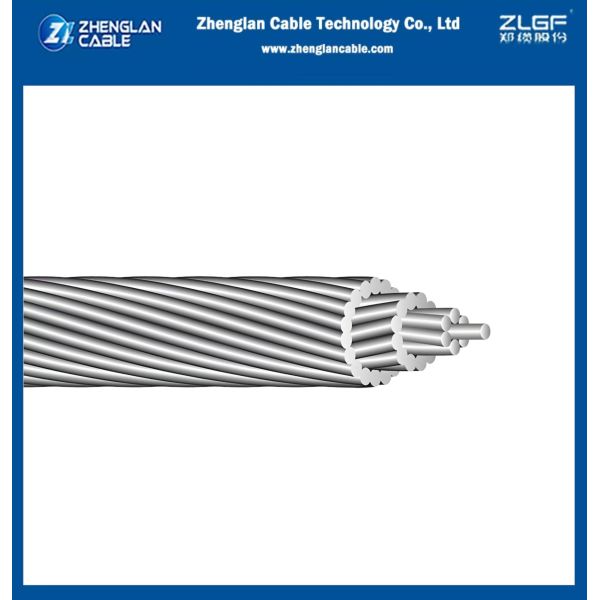

ACSR is concentrically stranded conductor with one or more layers of Aluminium wire hard-drawn 1350-H19 on the galvanized steel wire core. The core may be single wire or stranded depending on the size. Steel wire is available in Class A or B galvanization as corrosion protection.
ACSR is according to electrical and mechanical strength requirements of transmission or distribution lines, can provides an appropriate design combining the quantity of Aluminium and galvanized steel wires.
Code Calculated area Strand/

Dia.

 O.D. Linear mass Strength Resistance

at 20℃
Al/St. Al. Steel Total Al. Steel Al. St. Total
mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km daN Ω/km
70/12 69.9 11.4 81.3 26/1.85 7/1.44 11.7 193 91 284 2680 0.4130

ACSR 70/12mm2 AL26/1.85 ST7/1.44 BS215 Bare Conductor Aluminum Conductor Steel Reinforced

ACSR 70/12mm2 AL26/1.85 ST7/1.44 BS215 Bare Conductor Aluminum Conductor Steel Reinforced

ACSR 70/12mm2 AL26/1.85 ST7/1.44 BS215 Bare Conductor Aluminum Conductor Steel Reinforced

ACSR 70/12mm2 AL26/1.85 ST7/1.44 BS215 Bare Conductor Aluminum Conductor Steel Reinforced

ACSR 70/12mm2 AL26/1.85 ST7/1.44 BS215 Bare Conductor Aluminum Conductor Steel Reinforced

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
