H07V-K Copper Conductor PVC Wire CU/PVC Class 5 450/750V 2.5mm2 Copper Wire Pvc Insulated 90℃ IEC60227

Name: H07VK Copper Conductor PVC Wire CUPVC Class 5 450750V 25mm2 Copper Wire Pvc Insulated 90 IEC60227
Brand: Zhenglan cable
Price: 1 USD

Wholesale H07V-K Copper Conductor PVC Wire CU/PVC Class 5 450/750V 2.5mm2 Copper Wire Pvc Insulated 90℃ IEC60227 from china suppliers

Brand Name : Zhenglan cable

Model Number : Building wire 2.5mm2

Certification : 3C，CE, ISO 9001:2015，ISO 14001:2005

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, , Western Union

Supply Ability : 1500km

Delivery Time : 5~15 days

Packaging Details : 100m/Roll, 90m/roll or as request

Material : Class 5 Copper

Insulation : PVC

Application : for home usage

Conductor type : bare copper

Running Voltage : 450/750V

Color : black, red, green, blue, yellow/green

Country of original : Henan, China

Port : Qingdao or Shanghai

Contact Now

Description

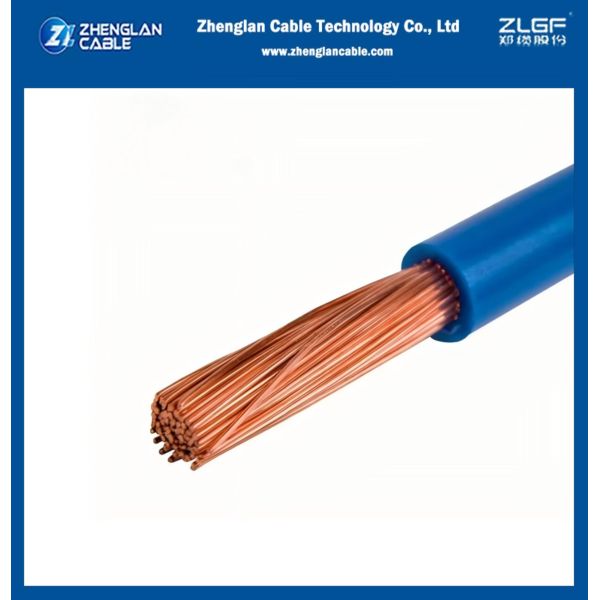

H07V-K Cable is a flexible PVC insulated single conductor copper cable according to IEC 60227. It is designed for fixed electrical installations and is widely used in residential wiring, industrial control cabinets and for internal wiring of machinery. The electrical wire is available in various sizes, such as H07V-K 16mm² for higher current requirements or H07V-K 10mm² for medium-sized tasks. The name “ H07V-K ” means:
H: Harmonized European Standard.
07: Rated voltage 450/750V (U0/U).
V: PVC insulation.
K: Bare or tinned copper conductor (Class 5 fine twisted construction).

Features

Highly flexible; easy to install: With 336 copper wires in a single core, it is suitable for narrow distribution boxes or complex wiring paths.
Voltage and temperature resistant, safe and reliable: The PVC insulation has a temperature resistance of 90°C (normal) and a short-circuit withstand temperature of 160°C (5 seconds)

Technical Data sheet

Nominal section (mm²)	Ø Approx.Conductor(mm)	Insulation Thickness(mm)	Maximum outer diameter (mm)	Max. Electrical Resistance At 20°C(Ω/km)	Approx. Cable Weight(kg/km)	Current Rating in Pipe in Air(A)
H07V-K
1×2.5	2.0	0.8	4.1	7.98	31	20

H07V-K Copper Conductor PVC Wire CU/PVC Class 5 450/750V 2.5mm2 Copper Wire Pvc Insulated 90℃ IEC60227

About Zhenglan Cable Technology CO., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 1000m.
