1KV aerial bundled cable xlpe insulated 2x16mm2 NFC-33-209
1KV aerial bundled cable xlpe insulated 2x16mm2 NFC-33-209 is an Aerial Bundled Cable specifically designed for three-phase low voltage distribution. With their great durability, ease of installation, and reliable performance, it’s rational to use LV ABC cables with most electrical distribution networks. They are commonly used for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight.
Important cable characteristics are :
Ultraviolet radiation resistance,
Ozone resistance,
High dielectric strength,
Light and easy to handle.
Installation: These cables are NOT ALLOWED to be buried, even in conduits.
1KV aerial bundled cable xlpe insulated 2x16mm2 NFC-33-209 structure
Conductor: Phase: Aluminium conductor, round stranded compressed (RM).
Insulation: XPLE compound, UV-resistant.
Core Identification: 1, 2, 3.........
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 3.5 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Standard: ANSI/ICEA S-76-474,
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560 etc.
1KV aerial bundled cable xlpe insulated 2x16mm2 NFC-33-209 technical data
| No. of cores and cross sectional area(mm2) | Nominal insulation thickness(mm) | Approximate diameter of cable(mm) | Max DC resistance at 20℃(Ω/km) | Approx. weight(kg/km) |
| 2x16 | 1.2 | 14.4 | 1.91 | 131 |

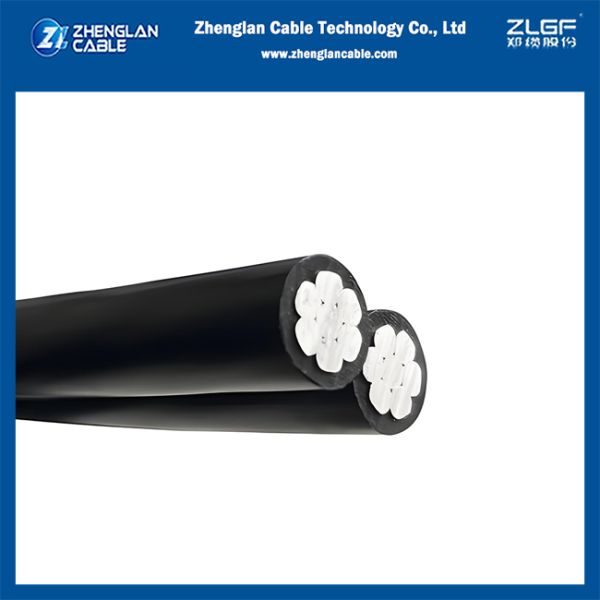

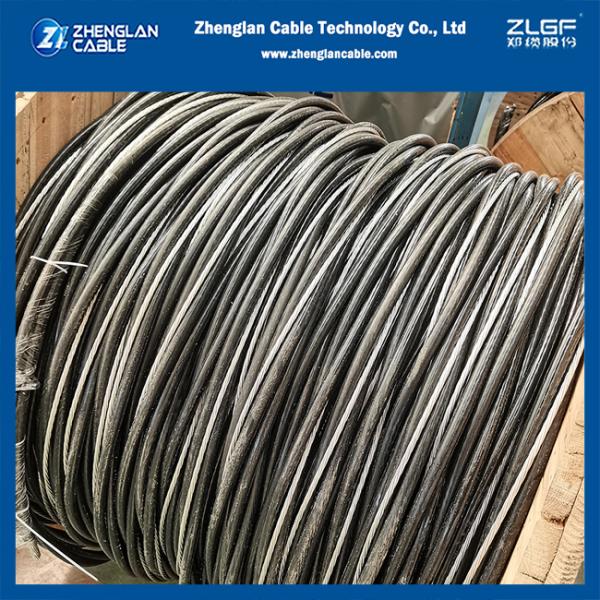

1KV aerial bundled cable xlpe insulated 2x16mm2 NFC-33-209 images
