Bare AAAC Conductor Aluminum Alloy Conductor AAAC 35mm2 7/2.52mm EN50182

Product Categories
Zhenglan Cable Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Bare AAAC Conductor Aluminum Alloy Conductor AAAC 35mm2 7/2.52mm EN50182

  • 1
  • 2
  • 3

Brand Name : Zhenglan Cable

Model Number : AAAC 35 7/2.52mm all aluminum alloy conductor bare AAAC overhead conductor

Certification : 3C，ISO 9001:2015，ISO 14001:2005

Place of Origin : Henan, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T,

Supply Ability : 100KM/Month

Delivery Time : 15-20 days

Packaging Details : Fully wooden drum, steel wooden drum, fully steel drum or customized

Material : all aluminium alloy

Size : 100sqmm

Quality : 100% test

Name : AAAC 35mm2 7/2.52mm all aluminum alloy conductor bare AAAC overhead conductor

Standard : EN50182

Port : Shanghai or Qingdao

Contact Now

APPLICATION:


AAAC - All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio and better sag characteristic.The conductor has a higher resistance to corrosion than ACSR


CONDUCTORS:


Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentriclay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy.

AAAC Technical data sheet

Sección
Nominal		 Formación
Hilos x Diám.		 Diámetro
Exterior		 Carga
de Rotura		 Resistencia Máxima Capacidad de
Corriente(*)		 Peso
Total
20°C c.c 75ºC c.a
mm2 Nº x mm mm KN Ohm/Km Amp Kg/Km
25
35		 7 x 2,13
7 x 2,52
7 x 3,02
7 x 3,57
19 x 2,17
19 x 2,52
19 x 2,84
19 x 3,17
19 x 3,52
19 x 4,01		 6,4
7,6
9,1
10,7
10,9
12,6
14,2
15,8
17,6
20,0		 7,90
11,06
15,89
21,19
21,57
29,08
36,9
46,3
57,1
71,8		 1,370
0,979
0,681
0,488
0,486
0,361
0,284
0,226
0,184
0,142		 1,640
1,173
0,816
0,585
0,582
0,432
0,340
0,270
0,220
0,170		 134
166
208
257
259
312
363
417
477
563		 68
95
50
70
70
95
120
150
185
240		 136
190
192
259
329
412
509
660

Images

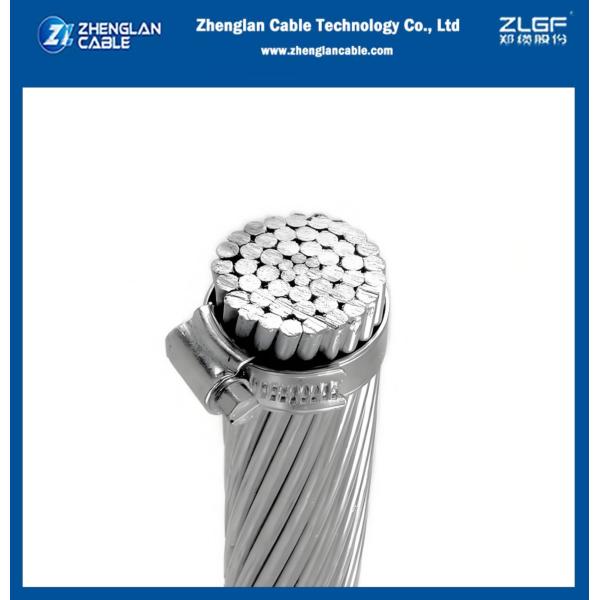

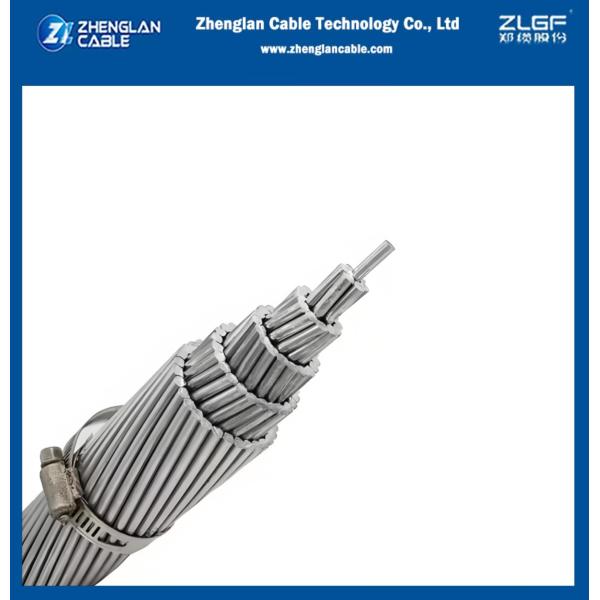

Bare AAAC Conductor Aluminum Alloy Conductor AAAC 35mm2 7/2.52mm EN50182

Bare AAAC Conductor Aluminum Alloy Conductor AAAC 35mm2 7/2.52mm EN50182

Bare AAAC Conductor Aluminum Alloy Conductor AAAC 35mm2 7/2.52mm EN50182

Bare AAAC Conductor Aluminum Alloy Conductor AAAC 35mm2 7/2.52mm EN50182

About Zhenglan Cable Technology. Co., Ltd

We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
