Power Cables Medium Tension Electric Cables 3X240mm2 aluminum conductor IEC 60502-2

Name: Power Cables Medium Tension Electric Cables 3X240mm2 aluminum conductor IEC 605022
Brand: Zhenglan Cable
Price: 1 USD

Wholesale Power Cables Medium Tension Electric Cables 3X240mm2 aluminum conductor IEC 60502-2 from china suppliers

Brand Name : Zhenglan Cable

Model Number : Medium voltage power cable

Certification : CE ISO CCC

Place of Origin : China

MOQ : 1000m

Price : US $1-300 / Meters

Payment Terms : T/T, L/C, Western Union...

Supply Ability : 500 Kilometer/Kilometers per Month xlpe power cable

Delivery Time : Both according to different products, product sizes, and production construction. Welcome to contact us for further communication.

Packaging Details : Wooden Drum/Iron Drum

Special Requiremets : Fire-resistant, Flame Retardant, Low Smoke

Sheath : PVC/PE/HFLS/LSZH

Metal Screen : CTS/CWS

Minimum Bending Radius : X15 Cable Diameter.

Insulation : XLPE/TR-XLPE

Condutor : Copper/Aluminuim

Standards : IEC 60502-2/SANS 1339

Armoured : SWA/STA /AWA/Unarmoured

Contact Now

Applications

XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 26/35kV.

Construction:

Conductor	Aluminum Conductor as per IEC 60228,Class 2
	Circular or Shaped conductor
	Flexible conductor(class 5) optional.
Insulation	XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional	Copper tape or copper wires braiding optional
Sheath	PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Technical Parameters:

Nom. Cross-section of conductor

Strands No./Dia. Of Conductor

Insulation Thickness

Sheath Thickness

Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)

Testing Voltage A.C

Current Rating

mm²

pc/mm

kg/km

Ω /km

kV/5min

In air (A)

In soil(A)

3 × 240

372.56

10.5

4.4

103.0

10270

0.125

365

380

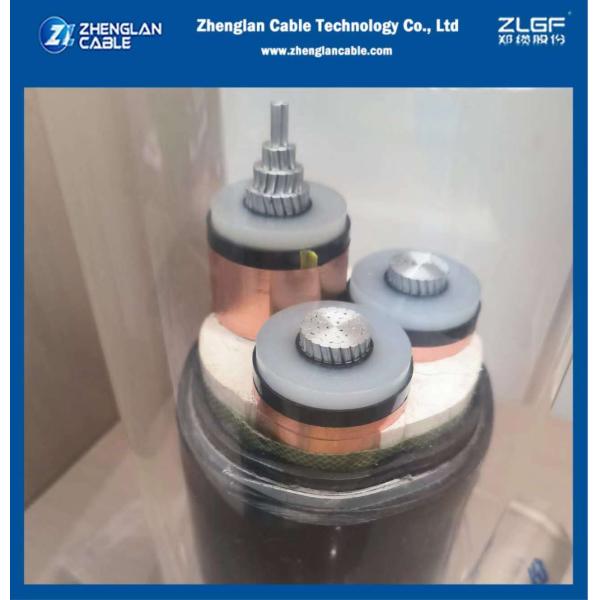

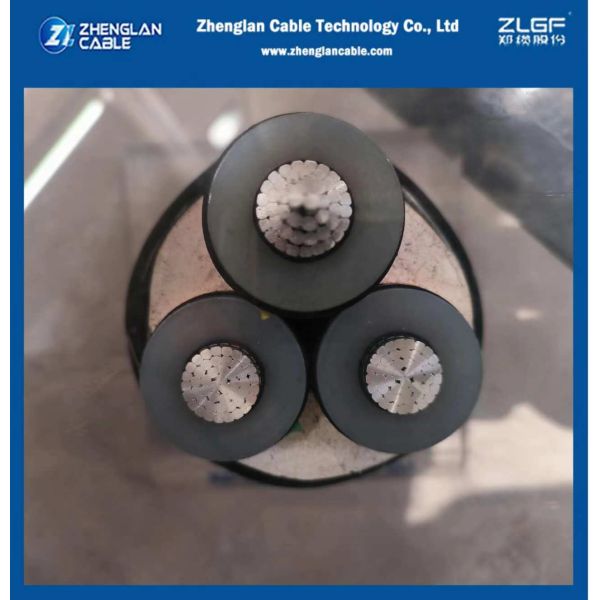

Image:

Power Cables Medium Tension Electric Cables 3X240mm2 aluminum conductor IEC 60502-2

Packing and Shipping:

Product Packaging:
The medium voltage power cables will be packaged in sturdy wooden reels or drums to ensure safe transportation and storage. The reels or drums will be labeled with the product specifications, including the cable type, length, and voltage rating.
Shipping:
We will ship the medium voltage power cables via a reliable and trusted carrier, ensuring that they reach their destination safely and on time. The shipping cost will be calculated based on the weight and volume of the order and the shipping destination. We will provide our customers with a tracking number so they can monitor the shipment's progress and expected delivery date.

Product Tags:

3X240mm2 Medium Tension Electric Cables

aluminum conductor Medium Tension Electric Cables

Power Cables Medium Tension Electric Cables 3X240mm2 aluminum conductor IEC 60502-2 Images
