ACSR 120/20mm2 AL26/2.44 ST7/1.90 Aluminum Conductor Steel Reinforced DIN48204

Name: ACSR 12020mm2 AL26244 ST7190 Aluminum Conductor Steel Reinforced DIN48204
Brand: Zhenglan Cable
Price: 0.5 USD

Wholesale ACSR 120/20mm2 AL26/2.44 ST7/1.90 Aluminum Conductor Steel Reinforced DIN48204 from china suppliers

Brand Name : Zhenglan Cable

Model Number : 120/20mm2 AL26/2.44 ST7/1.90 Aluminum Conductor Steel Reinforced

Certification : 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin : Henan, China

MOQ : Negotiable

Price : 0.5-80USD/m

Payment Terms : T/T, L/C

Supply Ability : 10-30tons/day

Delivery Time : 15 days

Packaging Details : Wooden drum, wood and steel drum,as customer's request

Material : Aluminum Conductor Steel Reinforced

Aluminum : aluminum and galvanized steel wire

Core : Steel

Cable Drum Length : Customized

characted : Bare Conductor

Contact Now

ACSR Conductor

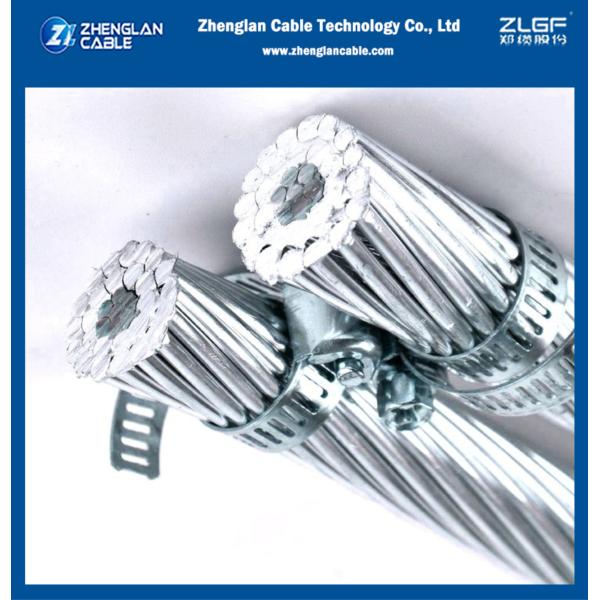

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.

CODE	CALCULATED AREA			STRAND/ DIA.		O.D.	LINEAR MASS			STRENGTH	RESISTANCE AT 20℃
Al/St.	Al.	Steel	Total	Al.	Steel	O.D.	Al.	St.	Total	STRENGTH	RESISTANCE AT 20℃
mm2	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	daN	Ω/km
120/20	121.06	19.8	141.4	26/2.44	7/1.90	15.5	336	158	494	4565	0.2374

ACSR 120/20mm2 AL26/2.44 ST7/1.90 Aluminum Conductor Steel Reinforced DIN48204

Our main products are

overhead power transmission use bare conductor(ACSR, AAC, etc)

1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)

STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable

STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable

450/750V instrument use control cable (shielded or unshielded)

300/300V, 300/500V, 450/750V fixed installation use building wire

ACSR 120/20mm2 AL26/2.44 ST7/1.90 Aluminum Conductor Steel Reinforced DIN48204

Why you choose us?

Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
