XLPE Insulated 1.5mm2 2 Cores Copper Cable 2x1.5mm2 IEC60502 CU/XLPE/PVC

  • 1
  • 2

Brand Name : Zhenglan cable

Model Number : XLPE Insulated 1.5mm2 2 Cores Copper Cable 2x1.5mm2 IEC60502 CU/XLPE/PVC

Certification : 3C,ISO 9001:2015,ISO 14001:2005

Place of Origin : China

MOQ : 500 meters

Price : 0.5-100USD/m

Payment Terms : L/C, T/T, , Western Union

Delivery Time : 7-10 working days

Packaging Details : Wooden drum, wood and steel drum, as customer's request

Name : XLPE Insulated 1.5mm2 2 Cores Copper Cable 2x1.5mm2 IEC60502 CU/XLPE/PVC

Number of cores : 2

Material : Copper

Insulated : PVC/XLPE

Sheath : PVC

Sheath Color : Black

Certificate : CCC,ISO9001,ISO14001

Length : As customer required

Contact Now

XLPE Insulated 1.5mm2 2 Cores Copper Cable 2x1.5mm2 IEC60502 CU/XLPE/PVC

Application

XLPE insulated 2-core power cables are normally used in power transmission and distribution systems. The 2-core XLPE cable is referred to as IEC60502 CU/XLPE/PVC 0.6/1KV.

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

Standard
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

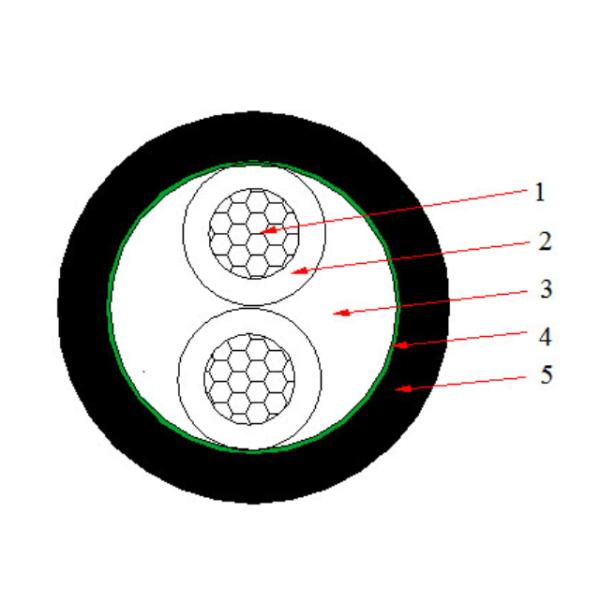

CONSTRUCTION

1. Conductor: Plain annealed copper, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

XLPE Insulated 1.5mm2 2 Cores Copper Cable 2x1.5mm2 IEC60502 CU/XLPE/PVC

PARAMETER

Cable Type: CU/XLPE/PVC
Operating voltage, U0 / U (V): 600/1000
Number of cores: 2
Nominal Area (mm2): 1.5
Conductor Stranding: 1 or 7
Insulation Thickness (mm): 0.7
Sheath Thickness (mm): 1.8
Cable Overall Diameter (O.D.) (mm): 10.4
Cable Weight Per 1000 Meters (kg): 105
Resistance DC 20°C Per 1000 Meters (Ω): 12.1
Allowable Ampacity in Air (Amps): 24
Allowable Ampacity in Ground (Amps): 35
Test Voltage: 3.5kV for 5 minutes
Operating temperature (°C) : -15 to +90
Final short circuit temperature (°C): 250

Show

XLPE Insulated 1.5mm2 2 Cores Copper Cable 2x1.5mm2 IEC60502 CU/XLPE/PVC

XLPE Insulated 1.5mm2 2 Cores Copper Cable 2x1.5mm2 IEC60502 CU/XLPE/PVC

About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.


Our main products are

  • overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
  • 1-35kv overhead transmission line use insulated conductor
  • power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
  • power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
  • 300/300V, 300/500V, 450/750V cotrol cable, house wire

FAQ

1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 500m.
