Overhead Insulated Cable 3Cx16+1x16sqmm AAC/XLPE+AAAC/XLPE 0.6/1kv ABC Cable

Product Categories
Zhenglan Cable Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

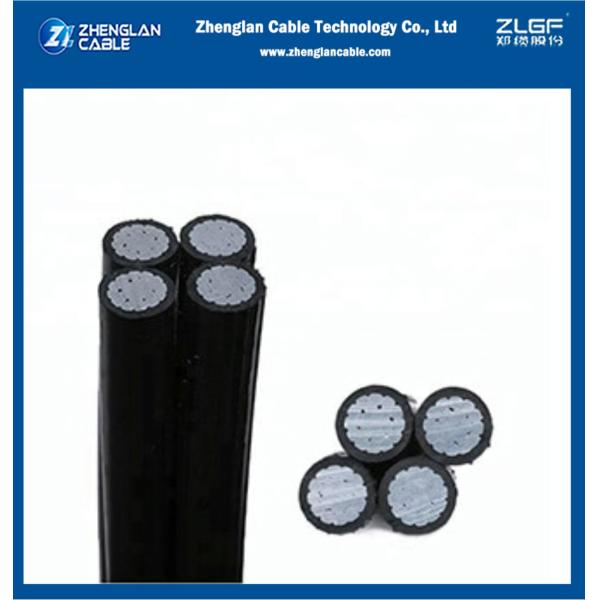

Overhead Insulated Cable 3Cx16+1x16sqmm AAC/XLPE+AAAC/XLPE 0.6/1kv ABC Cable

  • 1
  • 2
  • 3

Brand Name : Zhenglan Cable

Model Number : ABC

Certification : 3C，ISO 9001:2015，ISO 14001:2005,CE

Place of Origin : Henan, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 100Km/Month

Delivery Time : 15-30 days

Packaging Details : Wooden drum, wood and steel drum, as customer's request

Insulation Material : PVC/XLPE

Voltage : 0.6/1Kv

Type : Low Voltage

Standards : GB/T14049-2008/IEC

Color : Black

Phase conductorMaterial : Aluminum

Neutral conductor : Aluminum Alloy

Contact Now

Application:


Primarily used for 120 volt overhead service applications such as street lighting,outdoor lighting,and temporary service for construction.To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crosslinked polyethylene(XLP)insulated conductors.

Construction:
Model NO.
AAC AAAC
Current
DC & AC
Insulation Material
XLPE
Sheath Material
None

Certification
ISO, CCC, CE, RoHS, VDE, GB/T

Model
ABC Cable ( Aerial Bundled Cable )
Brand
Chang Qing Teng
Product Name
AAC AAAC
Rated Voltage
0.6/1 Kv
Conductor
Aluminum/Aluminum Alloy
Insulation
XLPE
Usage
Overhead
Origine
China
Certificates
ISO Ce CCC RoHS

Technical Data Sheet of ABC

SPEC. mm2 Conductor Structure Insulation Material Insulation Thickness (mm) Approx. Overall Diameter (mm) Approx. Weight (kg/km) Packing Meters per Drum
Phase (Compacted AL) Neutral(Alloy)
(No./mm) Aluminum (No./mm)
3x16+1x16 7/1.72 7/1.72 XLPE (HDPE) 1.2 16.3 241.5 250-3500m

Overhead Insulated Cable 3Cx16+1x16sqmm AAC/XLPE+AAAC/XLPE 0.6/1kv ABC Cable

Overhead Insulated Cable 3Cx16+1x16sqmm AAC/XLPE+AAAC/XLPE 0.6/1kv ABC Cable

Overhead Insulated Cable 3Cx16+1x16sqmm AAC/XLPE+AAAC/XLPE 0.6/1kv ABC Cable

About us

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ


Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
